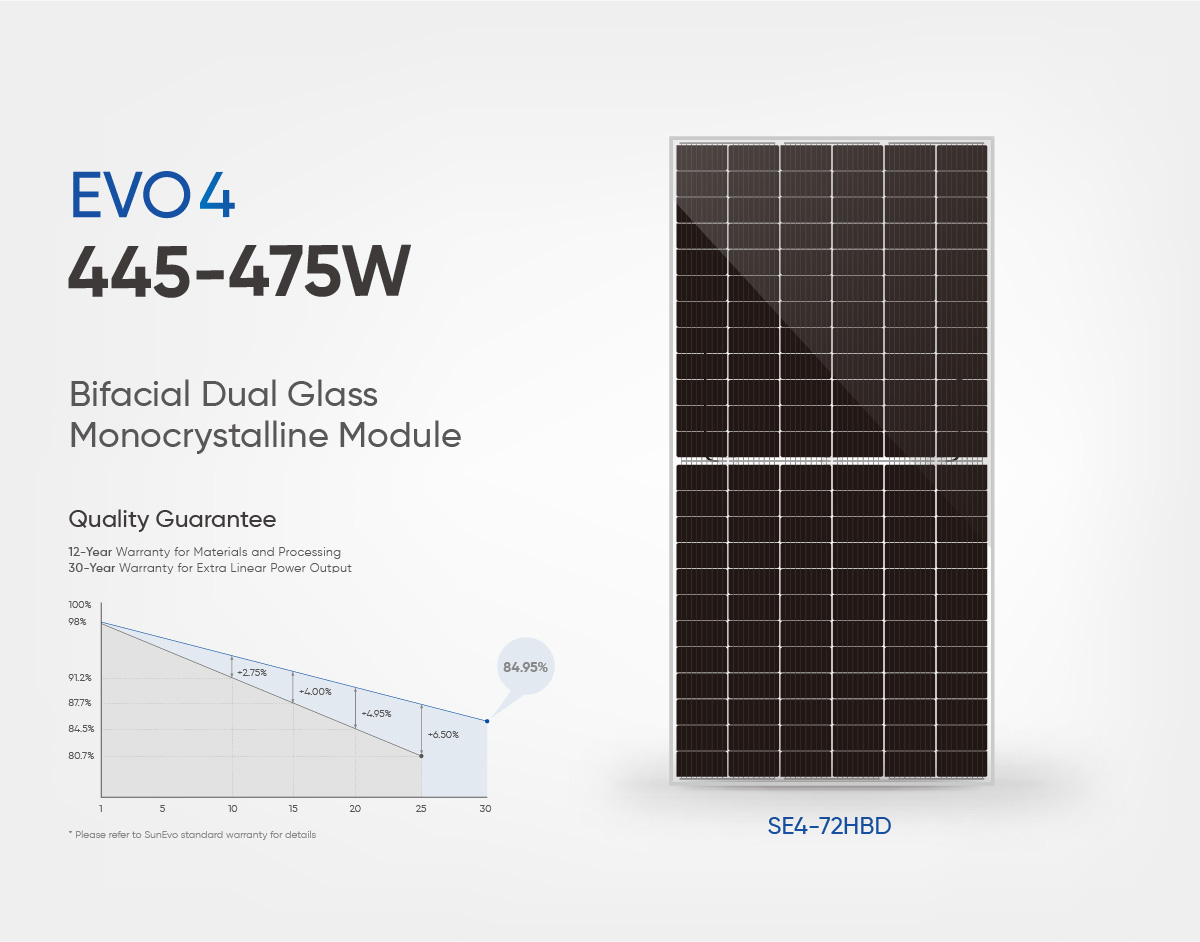

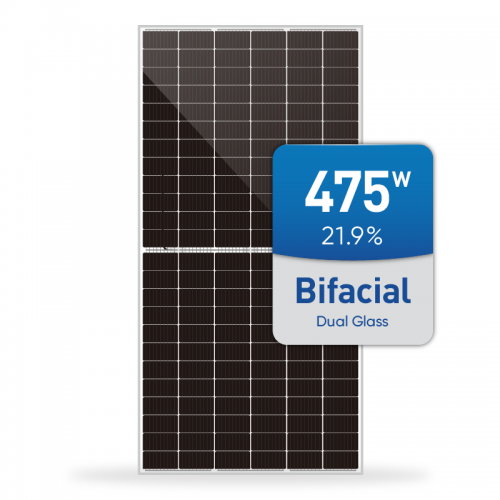

EVO 4 Series 144 Half Cells 445W 450W 455W 460W 465W 470W 475W Bifacial Dual Glass Solar Module


SunEvo Solar Evo 4 series PERC / HJT solar sanels are produced with the highest quality materials within the industry. Using the advanced 9BB (MBB Technology) solar cell conbines with half-cut cell technology to guarantee more power. Combine the best of crystalline and thin-film technologies, N-type technology. With highly efficient cell architecture for high performance and special anti-reflective glass increases light transmission for higher power.



Evo-4-Series-144-Half-Cut-Cells-Mon-PERC-HJT-Bifacial-Dual-Glass-Solar-PV-Panel-445W-450W-455W-460W-465W-470W-475W-Photovoltaic-Solar-Cell-Panel-Module




Electrical Specification


Maximum Power (Pmax/W)

445

450

455

460

465

470

475

Maximum Power Voltage (Vmp/V)

41.75

42.1

42.41

42.76

43.1

43.44

43.78

Maximum Power Current (Imp/A)

10.66

10.69

10.73

10.76

10.79

10.82

10.85

Open Circuit Voltage (Voc/V)

49.55

49.84

50.1

50.39

50.68

50.96

51.25

Short Circuit Current (Isc/A)

11.31

11.34

11.37

11.4

11.43

11.47

11.5

Module Efficiency (%)

20.5

20.7

20.9

21.2

21.4

21.6

21.9

Power Output Tolerance (W)

0~+5W

Temperature Coefficient of Isc

+0.05%/°C

Temperature Coefficient of Voc

-0.28%/°C

Temperature Coefficient of Pmax

-0.36%/°C





Certifications



All of SunEvo's products have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments. We pursue the ultimate in quality and provide the best guarantee for customers' assets and profits.



SunEvo-Solar-PV-Panel-Monocrystalline-CE-TUV-UL-IEC-61215-IEC-61730-INMETRO-CB-Certificates-Photovoltaic-Solar-Cell-Module


  • ISO 9001: 2015: ISO Quality Management System
  • ISO 14001: 2015: ISO Environment Management System
  • ISO 45001: 2018: Occupational Health and Safety
  • CE & EU declaration of conformity
  • IEC 61215 / IEC 61730 Anti-PID Test for Photovoltaic Module
  • IEC 61701 Salt Mist Corrosion Test for Photovoltaic Module
  • IEC 60068-2-68 Dust and Sand Test for Photovoltaic Module
  • UL1703 / UL 61730 – PV Module Safety Standards by UL / CSA / INTERTEK
  • Italian First-Class Report on Fire Prevention
  • INMETRO Ex Tariff for Brazil
  • MCS / JEPC & JET / CEC(Clean Energy Council) approved PV modules / FIDE / CB / DEWA / RETIE



Advantages of Evo 4 Sereis Solar Module


High Power

  • Up to 475W front power and 21.9% module efficiency with half-cut andMBB (Multi Busbar) technology bringing more BOS savings
  • Lower resistance of half-cut and good reflection effect of MBB ensure high power


High reliability

  • Ensured PID resistance through cell process and module material control
  • Resistant to salt, acid and ammonia
  • Proven to be reliable in high temperature and humidity areas
  • Certificated to fire class A
  • Minimizes micro-crack and snail trails
  • Mechanical performance: Up to 5400 Pa positive load and 2400 Pa negative load


High energy generation

  • Up to 25% additional power gain from back side depending on the albedo ;
  • Excellent IAM and low light performance validated by 3rd party with cell process and module material optimization
  • Lower temp coeffcient (-0.35%) and NMOT bring more energy leading to lower LCOE
  • Better anti-shading performance and lower operating temperature


Easy to install

  • Frame design makes module compatible with all racking and installation methods
  • Easy to handle and install as normal framed module during transportation
