Good Price Growatt Single Phase MPPT Solar Charge Controller On Grid Tie PV Inverter
- In stock, ready to ship
- Backordered, shipping soon

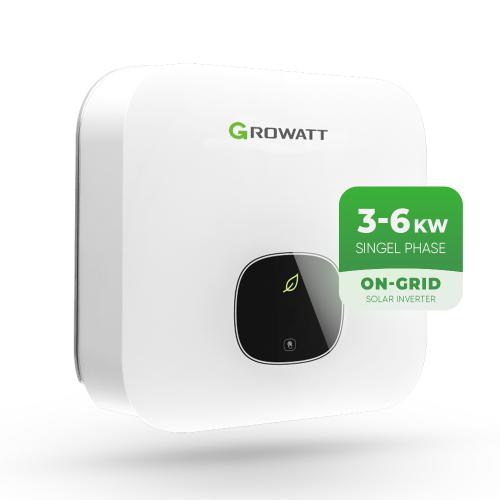

Growatt Single Phase 2.5kw 3kw 3.6kw 4.2kw 4.6kw 5kw 6w On Grid Tie PV Inverter
Growatt Min series single-phase residential grid-tie inverters are advanced photovoltaic inverters designed for home solar systems. With their compact size and user-friendly design, they efficiently convert DC power generated by solar panels into AC power for household consumption and grid export.
Growatt Min series offers a range of power outputs to suit different residential solar installations, ensuring seamless integration with the grid and enabling homeowners to maximize their solar energy utilization while reducing electricity costs.
Important Specification of Growatt MIN series Inverter
The following are some descriptions of Growatt Min series inverter, if you need the full datasheet, please contact our sales team.
Datasheet
|
MIN 2500TL-X
|
MIN 3000TL-X
|
MIN 5000TL-X
|
MIN 6000TL-X
|
Input Data (DC)
|
||||
Max. recommended PV power
(for module STC) |
3500W
|
4200W
|
7000W
|
8100W
|
Max. DC voltage
|
500V
|
500V
|
550V
|
550V
|
Start voltage
|
100V
|
|||
Nominal voltage
|
360V
|
|||
MPP voltage range
|
80V-500V
|
80V-500V
|
80V-550V
|
80V-550V
|
No. of MPP trackers
|
2
|
|||
No. of PV strings per MPP tracker
|
1
|
|||
Output data(AC)
|
|
|||
AC nominal power
|
2500W
|
3000W
|
5000W
|
6000W
|
Max. AC apparent power
|
2500VA
|
3000VA
|
5000VA
|
6000VA
|
Nominal AC voltage(range*)
|
Default:240V split-phase, optional:208V & 240V single phase , 183-228@208V 211-264V@240V
|
|||
AC grid frequency(range*)
|
50/60 Hz (45-55Hz/55-65 Hz)
|
|||
AC grid connection type
|
Single phase
|
Advantages of Growatt MIN series Inverter
--Maximum efficiency of 98.4%
--Wide input voltage range from 80--550Vdc
--Reactive power regulate
--Integrated DC switch
--Multi MPP controller
--DSP controller
--Touch control
-- Multi active power control mode
Accessories and Warranty of Growatt MIN series Inverter
In the following table you will find the optional accessories for your product. If required, you can order these from SunArk or Growatt dealer.
Name | Brief description |
Shine WIFI-X | WIFI monitor with USB interface |
Shine 4G-X | 4G monitor with USB interface |
Shine Link-X | RF monitor with USB interface |
Shine LAN-X | LAN monitor with USB interface |
Shipped to a Growatt service centre or contact SunArk for repair, or repaired on-site, or exchanged for a replacement device of equivalent value according to model and age.
SunArk offers 3 years warranty of this inverter. If any problem of the inverter, just contact our sales team.
With the scope of EU directives:
•2014/35/EU Low Voltage Directive (LVD)
•2014/30/EU Electromagnetic Compatibility Directive (EMC)
•2011/65/EU RoHS Directive and its amendment (EU)2015/863
Shenzhen Growatt New Energy Technology Co. Ltd confirms that the Growatt inverters
and accessories described in this document are in compliance with the above mentioned
