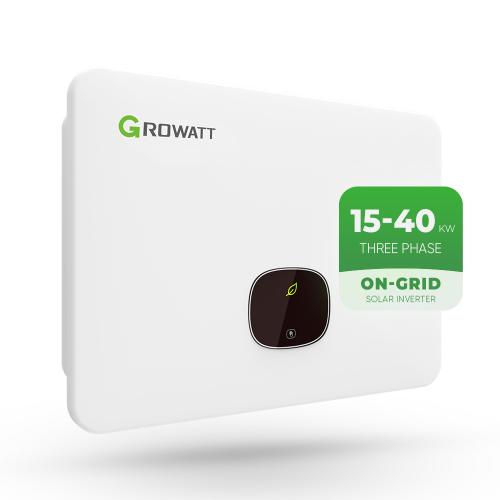

Growatt Three Phases Solar Inverter MID 30KTL3-X



Growatt MID 30KTL3-X inverter combines superior performance, durability, and user-friendliness, making it a top choice for commercial and industrial solar installations worldwide. Its advanced features, coupled with reliable support services, position it as a market leader in the solar energy industry.






Important Specification of Growatt MID series Inverter



The following are some descriptions of Growatt MID-X series inverter 30kw-40kw, if you need the full datasheet, please contact our sales team.


MID 30KTL3-X
MID 33KTL3-X
MID 36KTL3-X
MID 40KTL3-X
Input data (DC)
Max. recommended PV power (for module STC)
45000W
49500W
54000W
60000W
Max. DC voltage
1100V
Start Voltage
250V
Nominal voltage
600V
MPPT voltage range
200V-1000V
No. of MPP trackers
3/3/4/4
No. of PV strings per MPP tracker
2
2
2
2
Max. input current per MPPT tracker
26A  26A 26A 26A
Max. short circuit current per MPPT
32A
32A
32A
32A
Output data (AC)
Rated AC output power
30000W
33000W
36000W
40000W
Max. AC apparent power
33300VA
36600VA
39600VA
44000VA
Nominal AC voltage(range*)
220V/380V, 230V/400V (340-440V)
AC grid frequency;(range*)
50/60 Hz (45-55Hz/55-65 Hz)
Max. output current
50.5A
55.5A
60A
66.6A
Adjustable power factor
0.8leading…0.8lagging
THDi
<3%
AC grid connection type
3W+N+PE
General data
Dimensions (W / H / D)

580/435/230mm
Weight
29.5kg
29.5kg
30.5kg
30.5kg
Operating temperature range
-25 °C ... +60 °C
Self-Consumption (night)
<1W
Topology
Transformerless
Cooling
Natural convection
Protection degree
IP66
CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, TOR Erzeuger
G98/G99, G100, AS4777, UNE217001, UNE206007, PO12.2






Main Features of Growatt MID Series Inverter



One of its standout features is its high efficiency, achieved through advanced MPPT (Maximum Power Point Tracking) technology. This allows the inverter to continuously optimize the power output from the solar array by tracking and adjusting to the maximum power point, ensuring maximum energy harvest even in challenging conditions such as shading or varying sunlight intensity.

The MID 40KTL3-X is built with durability in mind, featuring an IP65-rated enclosure that provides protection against dust and water ingress. This rugged design ensures long-term performance and reliability, even in harsh environmental conditions.

In terms of connectivity and monitoring, the inverter offers multiple options including RS485, Wi-Fi, and Ethernet, enabling users to remotely monitor system performance and troubleshoot issues. This enhances overall system management and ensures optimal operation, reducing downtime and maximizing energy production.

In addition to its technical prowess, the Growatt MID 40KTL3-X is widely acclaimed in the market for its ease of installation and user-friendly interface. Its compact design and lightweight construction simplify the installation process, saving time and effort for installers.

Furthermore, Growatt provides comprehensive support services to assist customers throughout the installation process and beyond. This includes professional technical support, warranty coverage, and access to online resources for troubleshooting and system optimization.







Growatt On Grid Inverter Package

Growatt inverters are carefully packaged to ensure safe transportation and installation.

the MID 30KTL3-X is carefully packaged to ensure safe transportation and handling. Each unit is securely packed to prevent damage during transit, with clear labeling and instructions for easy identification and installation





Monitoring of Growatt MID Series Inverter

For monitoring and control, the inverter offers various communication options, including RS485, Wi-Fi, and Ethernet connectivity, allowing users to remotely monitor system performance and troubleshoot issues.

This enhances overall system management and ensures optimal operation.
