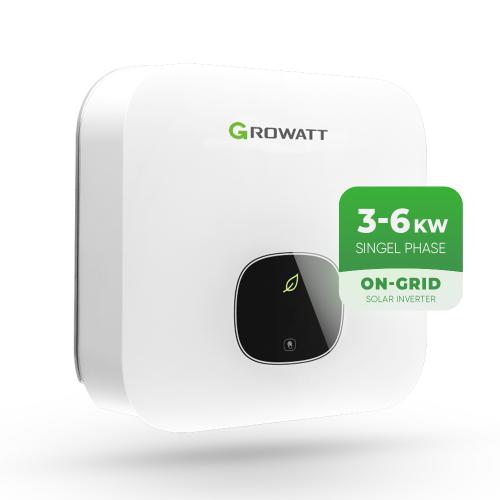

Growatt Single Phase MIN Series 2.5kw 3kw 3.6kw 4.2kw 4.6kw 5kw 6w On Grid Tie Solar Power Inverter Price



A household on grid type grid-tie inverter, also known as a residential solar inverter, is a device that converts the direct current (DC) electricity generated by solar panels into alternating current (AC) electricity, which is used to power household appliances.

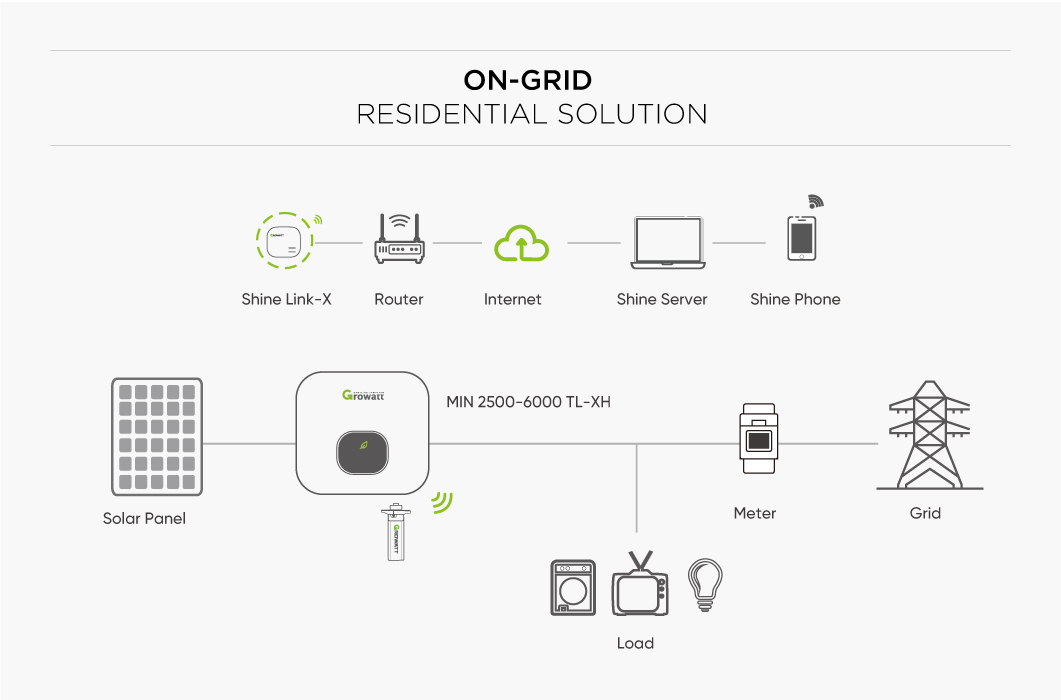

Growatt Min series on grid residential on grid solar inverter enables homeowners to connect their solar power system to the utility grid, allowing them to use the electricity they generate and sell any excess back to the grid.








Important Specification of Growatt MIN series Inverter



The following are some descriptions of Growatt Min series inverter, if you need the full datasheet, please contact our sales team.



Datasheet
MIN 2500TL-X
MIN 3000TL-X
MIN 5000TL-X
MIN 6000TL-X
Input Data (DC)
Max. recommended PV power
(for module STC)
3500W
4200W
7000W
8100W
Max. DC voltage
500V
500V
550V
550V
Start voltage
100V
Nominal voltage
360V
MPP voltage range
80V-500V
80V-500V
80V-550V
80V-550V
No. of MPP trackers
2
No. of PV strings per MPP tracker
1
Output data(AC)

AC nominal power
2500W
3000W
5000W
6000W
Max. AC apparent power
2500VA
3000VA
5000VA
6000VA
Nominal AC voltage(range*)
Default:240V split-phase, optional:208V & 240V single phase , 183-228@208V 211-264V@240V
AC grid frequency(range*)
50/60 Hz (45-55Hz/55-65 Hz)
AC grid connection type
Single phase






Key Features of Growatt MIN series Inverter



1) Safety and Reliability

- Type II SPD on DC side

- AFCI function optional



2) High Yields

- Max. efficiency 98.4%

- Dual MPP trackers

- Wide MPPT voltage range



3) User Friendly

- Future proof battery ready

- Touch key and OLED display

  • Compact design for one person installation
  •






Certifications of Growatt MIN series Inverter



As grid power company in different countries usually requires solar inverters to meet specific technical requirements, so Growatt Min series inverter has passed and finished many related certificates, the following are some examples: (If you need any of them, just please contact our sales team)

MIN_6000TL-X_SAA

MIN_2500-5000TL-X_SAA

MIN_2500-6000TL-X_IP65

MIN_2500-6000TL-XE_NTS_TypeA

MIN_2500-6000TL-XH_NTS_TypeA

MIN_2500-6000TL-X_NTS_TypeA



MIN_2500-6000TL-X_XE_XH_UNE217001

MIN_2500-6000TL-X_XE_XH_UNE206007-1



MIN_2500-6000TL-X_XA_UKCA_LVD

MIN_2500-6000TL-XE_XA_XH_Poland

MIN_2500-6000TL-XE_XH_UKCA_LVDMIN_3000-6000TL-X_VPC

MIN_2500-6000TL-XA_XH_CEI_0-21

MIN_2500-6000TL-X_XE_XH_VDE0126_French

MIN_2500-6000TL-X_XA_UKCA_EMC



MIN_2500-6000TL-X_XE_CEI_0-21

MIN_2500-6000TL-XH_EN50438

MIN_2500-4200TL-XA_N4105

MIN_2500-6000TL-X_XE_XH_VDE0126

MIN_2500-6000TL-XA_CE_LVD

MIN_2500-6000TL-X_XE_XH_C10_C11

MIN_2500-6000TL-XA_IEC62116_IEC61727



MIN_2500-6000TL-X_XE_XH_VDE0126_Greece

MIN_2500-6000TL-X_XE_EN50549-1

MIN_2500-6000TL-X_XE_XH_IEC62116_IEC61727

MIN_2500-6000TL-XE_XH_UKCA_EMC



MIN_2500-6000TL-XA_C10_C11

MIN_2500-6000TL-XE_XH_CE_LVD



MIN_2500-6000TL-XE_XH_CE_EMC

MIN_4200-6000TL-X_IEC60068&IEC61683

MIN_2500-6000TL-X_CE_EMC

MIN_2500-6000TL-X_CE_LVD
