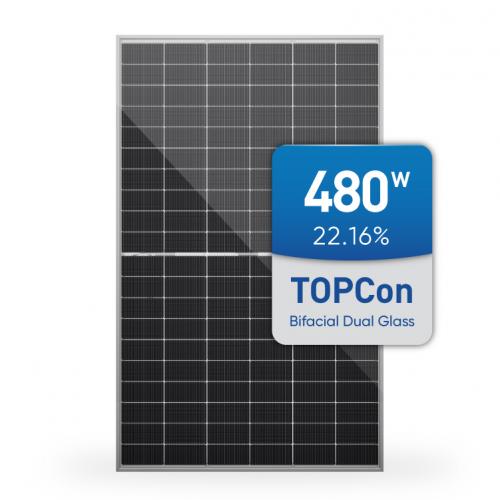

N-type TOPCon Bifacial Dual Glass 120 Half Cells 480W Solar Module

Read More
Click
Click
Click

N-type TOPCon Bifacial Dual Glass 120 Half Cells 480W Solar Module

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
  • Free worldwide shipping
  • Free returns
  • Carbon neutral
  • Secure payments
  • In stock, ready to ship
  • Backordered, shipping soon

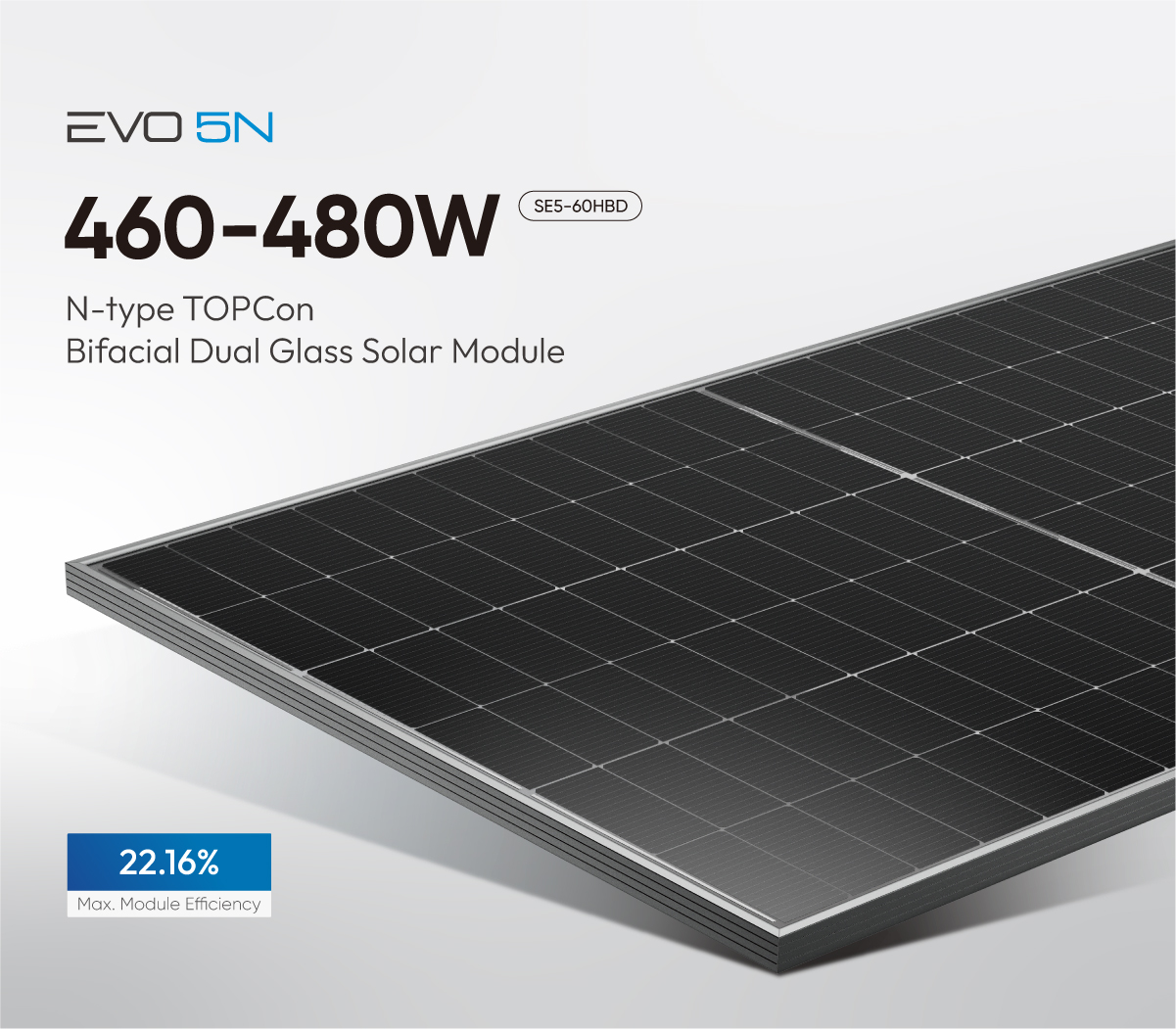

EVO 5N N-type TOPCon 120 Half Cells 460W 465W 470W 475W 480W Bifacial Dual Glass Solar Module

EVO 5N Series Bifacial modules combine leading N-type TOPCon technology, 182mm silicon wafer, and 16BB half-cell. The SunEvo N-type Bifacial Half-cell Module can reach a power output of up to 480W. N-type material adapted SunEvo's latest S-TOPCo 2.0 technology, no polysilicon wrap around, full electrical isolation, zero leakage current, much safe for the roof.



Electrical Parameters (STC*)

Maximum Power (Pmax/W)

460

465

470

475

480

Maximum Power Voltage (Vmp/V)

34.93

35.12

35.31

35.50

35.69

Maximum Power Current (Imp/A)

13.17

13.24

13.31

13.38

13.45

Open Circuit Voltage (Voc/V)

42.51

42.72

42.94

43.15

43.36

Short Circuit Current (Isc/A)

13.88

13.95

14.02

14.09

14.16

Module Efficiency (%)

21.24

21.47

21.70

22.93

22.16

Power Output Tolerance (W)

0/+5W

Temperature Coefficient of Isc

+0.045%/°C

Temperature Coefficient of Voc

-0.250%/°C

Temperature Coefficient of Pmax

-0.290%/°C



Bifacial Output-Rearsid Power Gain
5% Maximum Power (Pmax/W) 483 488 494 499 504
Module Efficiency STC(%) 22.30 22.54 22.78 23.03 23.27
15% Maximum Power (Pmax/W) 529 535 541 546 552
Module Efficiency STC(%) 24.42 24.69 24.95 25.22 25.49
25% Maximum Power (Pmax/W) 575 581 588 594 600
Module Efficiency STC(%) 26.55 26.84 27.12 27.41 27.70



Certifications

All of SunEvo's products have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, and natural environments. We pursue the ultimate in quality and provide the best guarantee for customers' assets and profits.

IEC61215/61730, IEC62804(PID), IEC61701(Salt).
IEC62716 (Ammonia), IEC60068-2-68(Sand).
ISO 9001:2015/quality management system.
ISO 14001:2015/environmental management system.
ISO 45001:2018/occupation health safety management system.
ISO 50001:2011/energy management system.
IEC TS 62941-2016/PV industry quality management system.



What is TOPCon Technology?


TOPCon technology introduction
Tunnel oxide passivated contact solar cell (Tunnel Oxide Passivated Contact solar cell, TOPcon) is a new type of passivated contact solar cell that was first proposed by the German Fraunhofer Solar Energy Research Institute at the 28th European PVSEC Photovoltaic Conference in 2013. A 1-2nm tunneling oxide layer is prepared on the back of the battery, and then a layer of doped polysilicon is deposited. The two together form a passivation contact structure and provide a good interface passivation for the back of the silicon wafer.

TOPCon theoretical limit efficiency
The ultimate efficiency of the battery composed of different electron/hole selective contact materials is 28.7%, and the current maximum conversion efficiency of the full-area battery reaches 25.4%. The biggest attraction of TOPCon is that it can retain and utilize the traditional P-type battery equipment manufacturing process to the maximum extent, and can upgrade and transform traditional PERC equipment, and the single GW transformation cost is about 60-80 million yuan. Therefore, traditional companies such as LONGi, Jinko, and Trina are relatively more active in the layout of TOPCon. TOPCon's main new equipment is LPCVD/PECVD equipment for amorphous silicon deposition and coating equipment.
