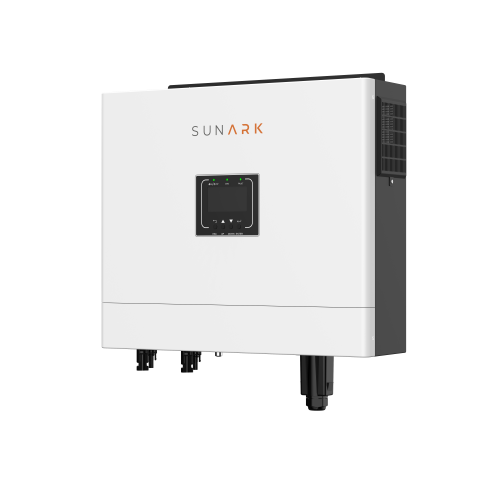

SunArk Single Phase Low Voltage 6KW Off Grid Solar Inverter



SunArk M6000HX-48-BP is equipped with high-quality components and intelligent control algorithms, this inverter boasts an impressive conversion efficiency of over 98%, ensuring that every ray of sunlight is transformed into usable power.






Important Specification of SunArk M6000HX-48-BP Inverter



The following are some descriptions of SunArk M6000HX-48-BP inverter, if you need the full datasheet, please contact our sales team.



Model
SunArk M6000HX-48-BP
Rated Power
6KVA/ 6KW
System DC Voltage
48VDC
Parallel Option
Yes,up to 6 units
Monitoring Option
WiFi or GPRS
Inverter Output
AC Voltage
220V-230V-240VAC
Surge Power
12000VA
Peak Efficiency
94%
Transfer Time
10ms(For Personal Computers) 20ms(For Home Appliances)
Waveform
Pure Sine Wave
Self Consumption at 0 Load
<70watt
Solar Charger & AC Charger
Type of PV array Input Terminal
MC4
Max.PV Array Open Circuit Voltage
500Voc
Max.PV Input Current/Per String
16A
Number of PV Array Input
2 String
Max.PV Array Power
Each String: 4000watt; Total 8000watt
MPPT Working Range
120~450VDC
Battery Overcharge Protection
60VDC
Max.Solar Charge Current
100A
Max.Grid Charge Current
80A
Max.(AC+PV)Charge Current
80A
Physical
Dimension
460*395*132mm
Net Weight
13.5kg
Communication Interface
USB/CAN/RS485
Environment
Humidity
5% to 95% Relative Humidity(Non-condensing)
Altitude
<2000m
Operating Temperature
0℃~50℃
Storage
-15℃~60℃
Noise
<60db






Key Features of SunArk M6000HX-48-BP Inverter



Here are some key features of the SunArk M6000HX-48-BP:

--One standout feature of the SunArk M6000HX-48-BP is its exceptional flexibility. Supporting a wide input voltage range, from 200V to 1000V, it can seamlessly integrate with various solar panel configurations and adapt to different environmental conditions. This versatility makes it an ideal choice for both residential and commercial applications.

--Built with reliability in mind, the SunArk M6000HX-48-BP is constructed using robust materials and undergoes rigorous testing to withstand the harshest conditions. Its IP65-rated enclosure provides excellent protection against dust and water, enabling it to operate flawlessly even in challenging environments. Additionally, the inverter's intelligent cooling system ensures optimal temperature regulation, further enhancing its longevity and performance.

--For ease of installation and maintenance, the SunArk M6000HX-48-BP features a user-friendly interface and a comprehensive monitoring system. Through its intuitive LCD display, users can effortlessly access real-time data on energy production, system status, and diagnostic information. Moreover, remote monitoring capabilities allow for seamless monitoring and troubleshooting, reducing downtime and optimizing system performance.

--Safety is paramount, and the SunArk M6000HX-48-BP excels in this aspect as well. It incorporates a range of protective features, including short-circuit protection, over-temperature protection, and anti-islanding protection, ensuring a safe and reliable operation. These safeguards not only protect the inverter but also safeguard the entire solar system and its users.

--Last but certainly not least, the SunArk M6000HX-48-BP is backed by our unwavering commitment to customer satisfaction. Our dedicated technical support team is always ready to assist with any inquiries or issues that may arise, ensuring a smooth and hassle-free experience for our valued customers.






How to Monitor The Performance SunArk M6000HX-48-BP Inverter?


The SunArk M6000HX-48-BP Inverter is equipped with WiFi and GPRS capabilities, allowing for remote monitoring through a convenient plug-and-play device.

This monitoring device enables users to easily keep track of their PV system's status using their mobile phones or by accessing the website, providing them with access to real-time information from any location and at any time.
