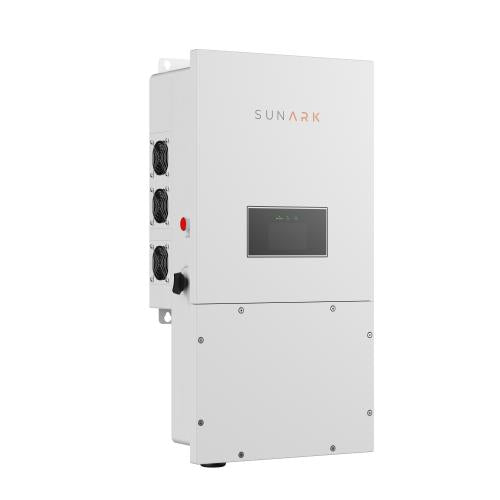

SunArk US Version Split Phase 10kW Hybrid Solar Inverter



Sunteny-S10000H-48SP is a high-quality and efficient inverter that offers reliable and optimized performance for residential and commercial solar PV systems. Its advanced features, robust construction, and user-friendly design make it an excellent choice for converting solar energy into usable electrical power.






Important Specification of SunArk Sunteny-S10000H-48SP Inverter



The following are some descriptions of SunArk Sunteny-S10000H-48SP inverter, if you need the full datasheet, please contact our sales team.



Model
Sunteny-S10000H-48SP
Input Data(DC)
Max.recommended PV power(for module STC)
15000W
Max.MPPT voltage
525V
Start MPPT voltage
130V
MPPT voltage range
150V-450V/370V
No.of MPPT trackers
3
No.of PV strings per MPPT tracker
2
Max.input current per MPPT tracker
22A
Max.short-circuit current per MPpT tracker
27A
Output Data(AC)
AC nominal power
10000W
Max.AC apparent power
10000VA
Nominal AC voltage(range*)
120V/240V Split phase
AC grid frequency(range*)
60Hz
Max.output current
50A
Adiustable power factor
0.8 leading.....0.8 lagging
THD
<3%
AC grid connection type
Split phase
General Data
Dimensions(W/H/D)
850x440x255mm
Weight
48.8kg/107.7lbs
Operating temperature range
-25-60°C,>45°C Derating
Noise emission (typical)
30 dB(A)
Self-Consumption
<60W
Topology
High Frequency lsolated Transformer
Cooling
Natural coolinga
Protection degree
IP65/NEMA 4
Relative humidity
100%
Altitude
No derating below 2000m
DC connection
MC4
Display
Touch Screen
Interface
RS485/CAN/USB
Mointor
WiFi/ GPRS (optional)
Warranty
5 years/10 years (optional)






Why Choose SunArk Sunteny-S10000H-48SP Inverter?



--Sunteny S10000H-48SP is a high-quality and efficient inverter that offers reliable and optimized performance for residential and commercial solar PV systems. Its advanced features, robust construction, and user-friendly design make it an excellent choice for converting solar energy into usable electrical power.

--One of the key features the Sunteny-S10000H-48SP is its high efficiency. It utilizes advanced MPPT (Maximum Power Point Tracking) technology, which ensures that the inverter operates at maximum power output regardless of variations in solar panel voltage and temperature. This results in increased energy conversion efficiency and higher overall system yields.

--The inverter is equipped with a robust and reliable architecture, incorporating high-quality components that ensure long-term performance and system reliability. It features a durable aluminum alloy housing, which provides excellent heat dissipation and protects the internal components from environmental factors. The inverter also has integrated protection features such as overvoltage protection, overcurrent protection, and temperature protection, ensuring safe and reliable operation under different conditions.

--The Sunteny-S10000H-48SP is designed for easy installation and maintenance. It has a compact and lightweight design, facilitating quick and hassle-free installation. The inverter is compatible with both wall and floor mounting options, offering flexibility in terms of installation location. Additionally, the plug-and-play connectors simplify the wiring process, reducing installation time and complexity.

--This inverter is also equipped with advanced monitoring and communication capabilities. It supports various communication protocols such as RS485 and Wi-Fi, allowing users to monitor the performance of their solar PV system remotely. The inverter can be connected to a monitoring system or mobile application, providing real-time data on energy production, system status, and potential issues, enabling quick diagnostics and troubleshooting.
