 Sunevo Solar Panel Ballasted Mount Bracket Flat Roof Mounting Structure Systems


The Ballasted solar panel system is a type of mounting system  suitable for concrete flat roof and trapezoidal sheet metal roof. Unlike other mounting methods that require penetrating the ground with foundations or piles, the ballasted system relies on the weight of the system components to keep the solar panels in place.




Technical Features of Ballasted Mounting Systems:

Product name MRac Ballasted Mounting System
Installation Site
Flat/slope roof, Flat ground, Membrane roof
Roof Type
Flat concrete roof, Slope concrete roof, Membrane roof

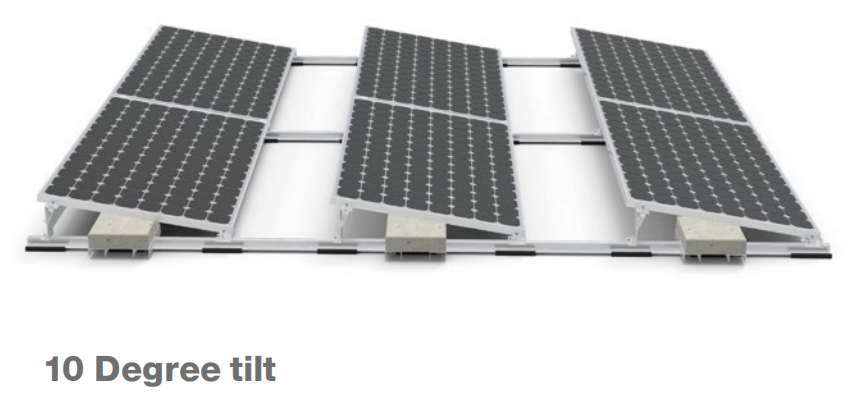

Tilt Angle
Max 15°
Wind Load
Snow Load
Applicable Solar Module
Panel Layout
Material AL6005-T5,SUS 304, EPDM
Finish SUS304 &Zinc-Nickel Alloy Electroplated Steel
Module orientation Landscape

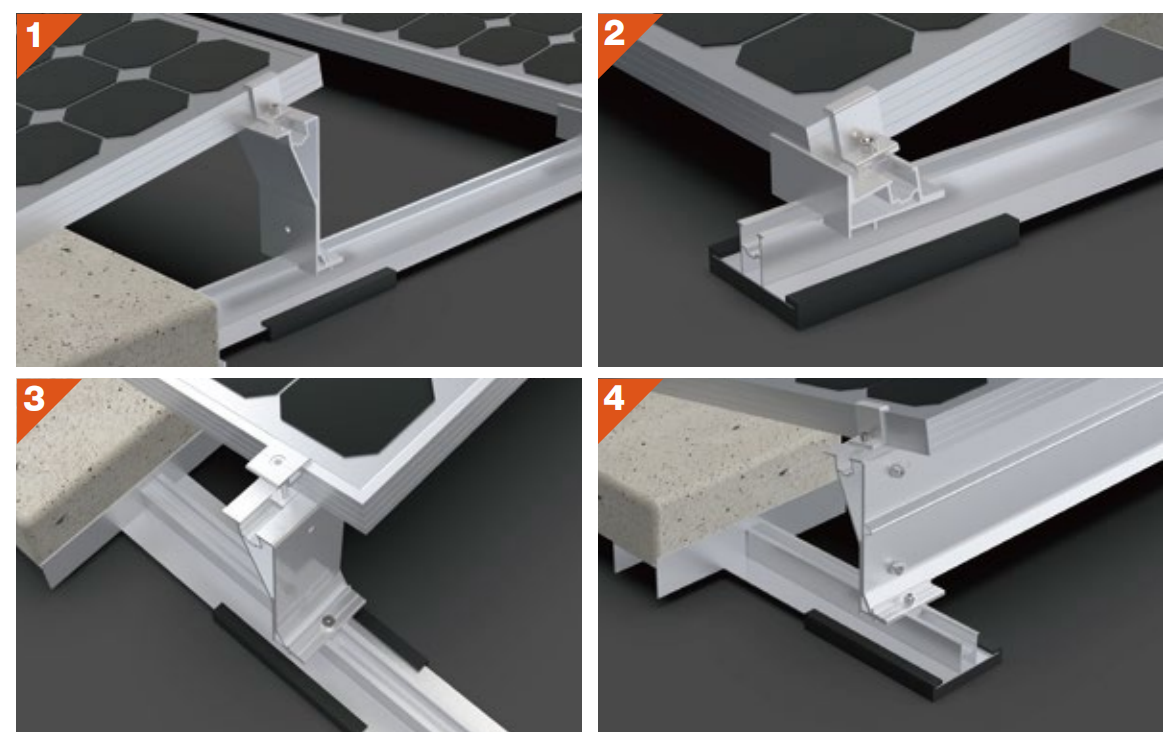

The Installation Processes of Ballasted Roof Mounting Systems


The installation process for a ballasted mounting system typically involves the following steps:


1. Roof Preparation: The roof surface should be inspected to ensure it is structurally sound and capable of supporting the weight of the system. Any necessary repairs or modifications may need to be made before installation.


2. Layout Design: The layout of the solar array is planned, considering factors like available roof space and optimal tilt and orientation for maximum sunlight exposure.


3. Mounting Rails Installation: The mounting rails are attached horizontally to the roof. They are normally secured using ballast blocks positioned strategically to evenly distribute the weight.


4. Solar Panel Attachment: The solar panels are affixed to the mounting rails using end and mid clamps. The electrical wiring between the panels is also connected.


5. Final Checks: The system is inspected to ensure proper alignment, secure attachment, and that all electrical connections are in place and functioning correctly.


6. Ballast Placement: The ballast blocks are carefully positioned on the mounting rails to provide sufficient weight and stability to the system.



How To Choose The Proper Ballasted Mounting System?

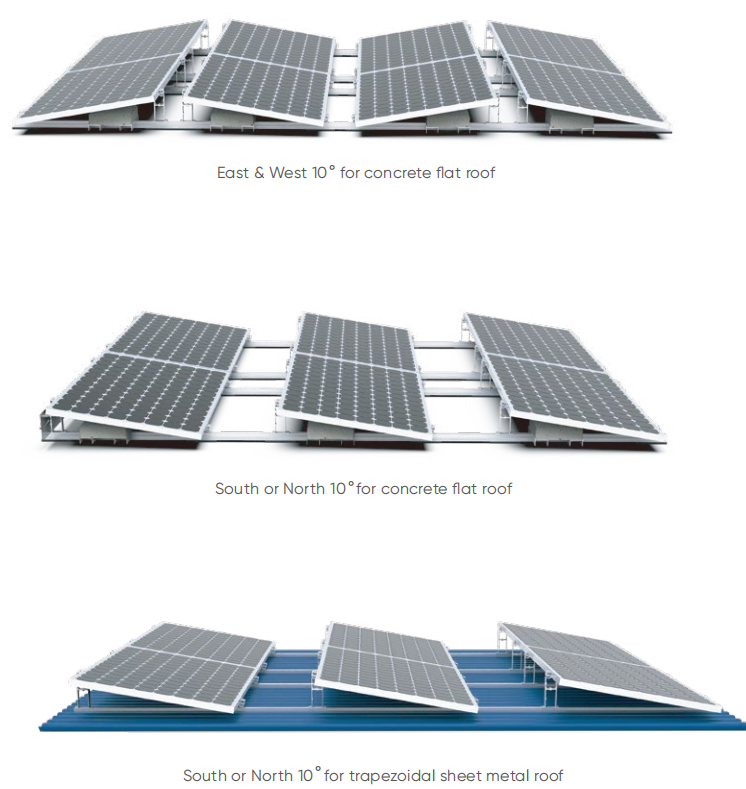

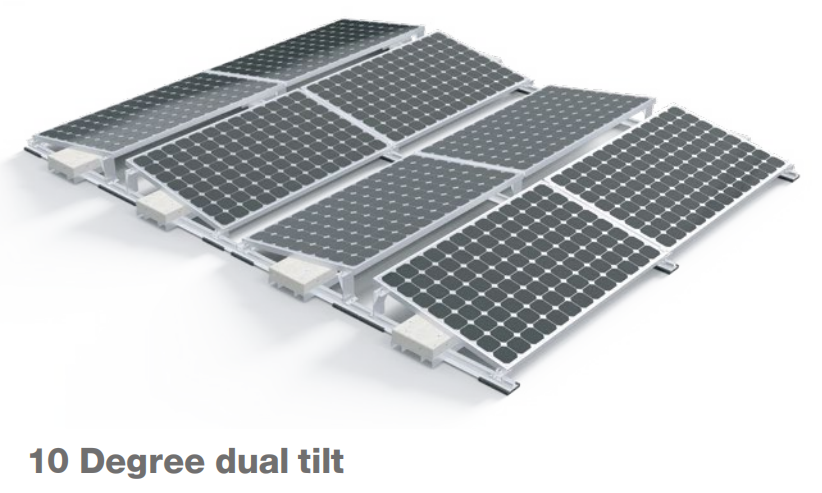

There are many different types of customized ballasted mounting systems, such as dual tilt type, East & West design type, South or North design type, and even wind-proof type,etc. Therefore,  it's very important to know how to choose a proper ballasted mounting system.


When selecting a ballasted mounting system, consider the following factors:

--Weight requirements: Determine the weight needed to securely hold the panels in place based on wind loads and other environmental factors.

--Compatibility: Ensure the system is compatible with the solar panels you intend to install.

--Installation simplicity: Look for systems with straightforward installation processes and easy-to-use components.

--Structural integrity: Verify the system's structural integrity and resistance to weather conditions, such as high winds or snow loads.

--Compliance with regulations: Ensure the system meets local building codes and regulations.


Remember to consult with a professional solar installer or engineer to assess your specific requirements and design a ballasted mounting system that meets your needs.

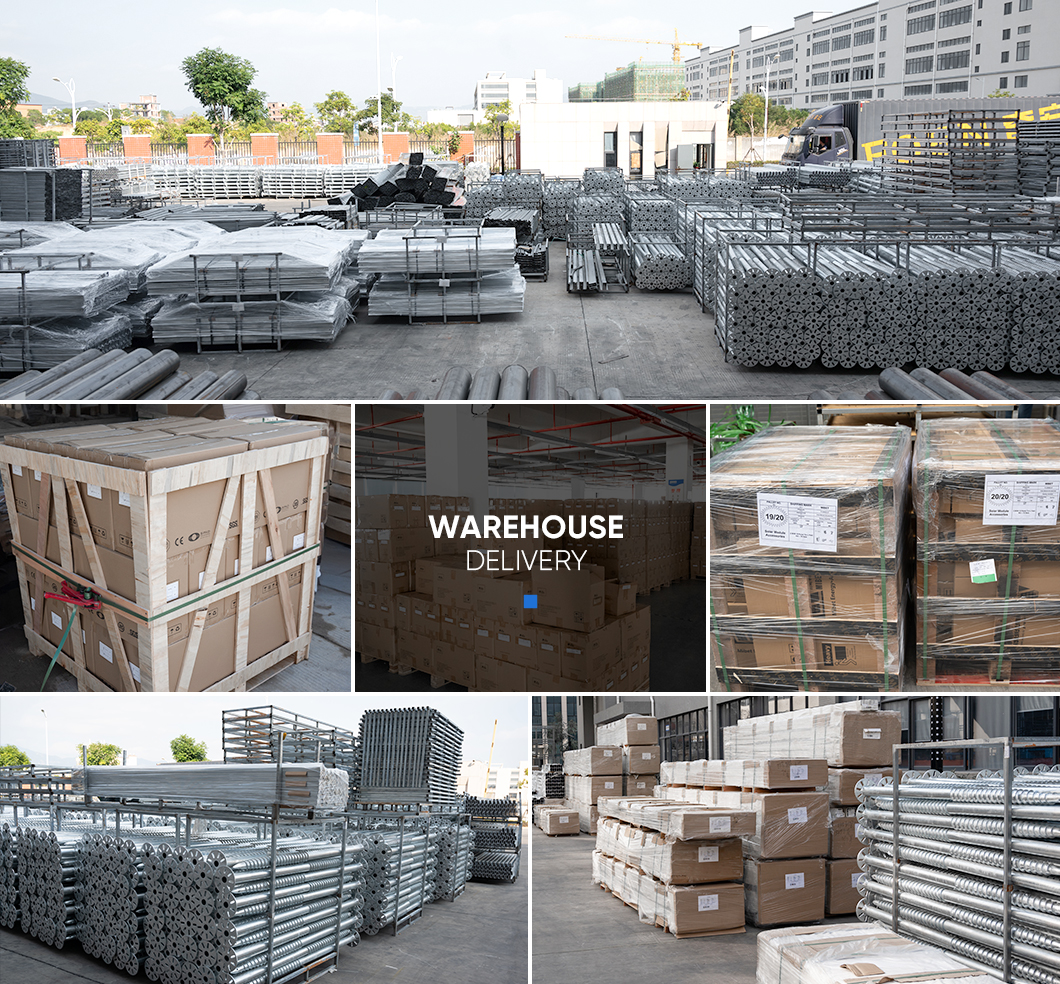

Package of Rack Mounting


Box or Crate Packaging: The individual packaged components are placed in suitable boxes or crates for consolidation and transportation. These boxes or crates are designed to withstand the rigors of shipping and handling, providing secure and organized packaging.



  • Free Shipping: We offer Free shipping with a delivery time of 3-7 Working days to make your shopping hassle-free.

  • In Stock: Our store items are all in stock, ensuring that you can enjoy your favorite items instantly.

  • Own Warehouse: Our warehouse is located in Los Angeles, California, ensuring that your order is delivered quickly and on time.

  • Returns and exchanges are hassle-free: What's more, returns and exchanges are hassle-free to make your shopping experience easier and more enjoyable.

  • 30 days money back guarantee: If you are not satisfied with your item, we will provide you with a money back guarantee within 30 days.

Thank you for your choice and support, and we look forward to providing you with quality logistics services!

More details at Shipping Policy

If you choose to use the surface mount installation as an option for your fencing, we will not warranty nor will assume liability for the fencing boards or the post/mounting system in the event of wind-related damage.

Standard warranty for color and material integrity will apply, but damage due to wind will be considered an act of nature and as such will not be covered. If you have any questions or concerns about the product before installation, please feel free to contact us.
