Trina Panel Solar 540W 545W 550Watt 555 Wp 560 Watts China Solar Panel

Read More
Click
Click
Click

Trina Panel Solar 540W 545W 550Watt 555 Wp 560 Watts China Solar Panel

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
  • Free worldwide shipping
  • Free returns
  • Carbon neutral
  • Secure payments
  • In stock, ready to ship
  • Backordered, shipping soon

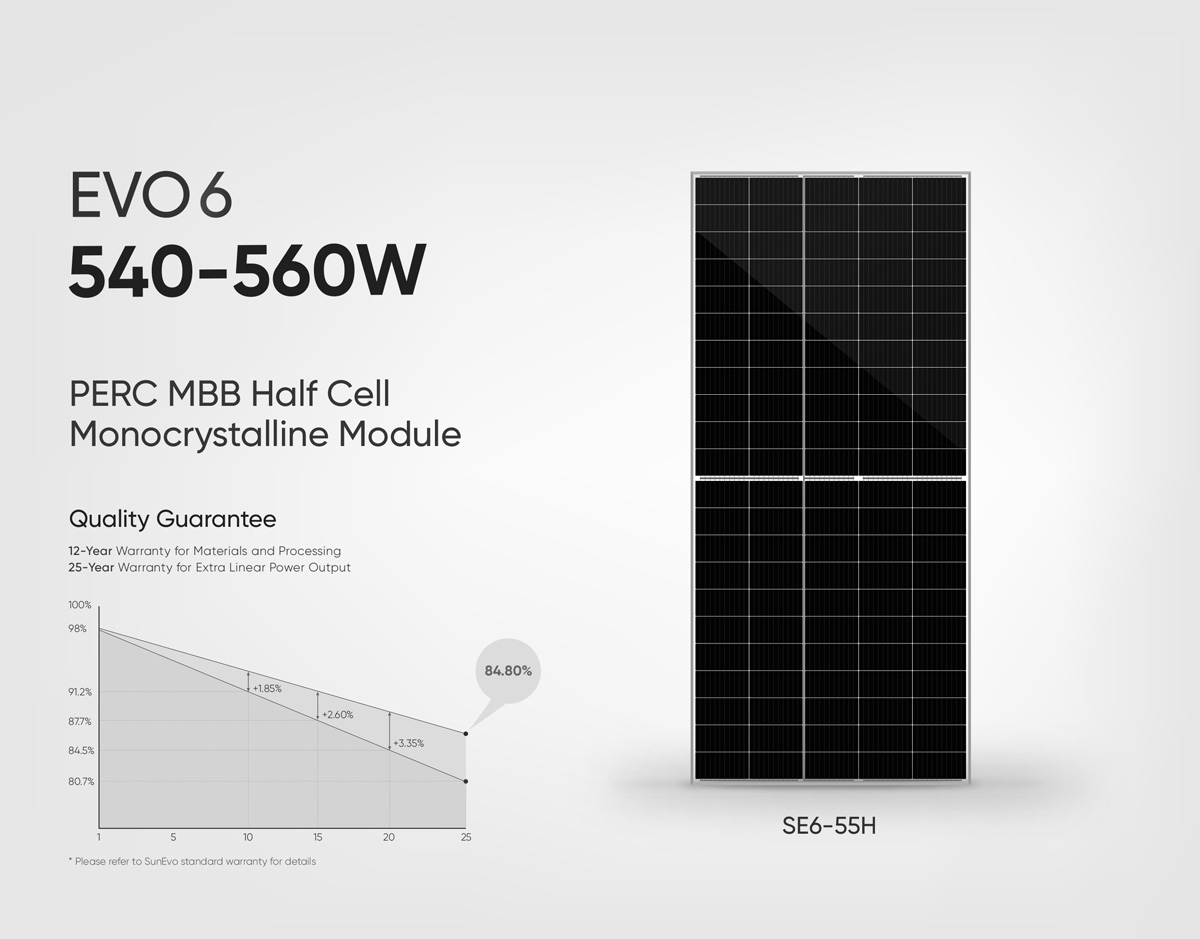

EVO 6 Series 110 Half Cells 540W 545W 550W 555W 560W Photovoltaic Panel

In order to achieve the ultimate cost-effective solar panel module, SunEvo Solar launched a new generation of ultra-high power PV modules, the Evo 6 series based on 210mm solar cell. This 110 half cut cells series integrates 210mm silicon wafers, with PERC, multi-busbar cell technology and high-density encapsulation, increasing the module efficiency up to 21.7%. The rated output power reach 560Wp.



Electrical Specification


Maximum Power (Pmax/W)

540

545

550

555

560

Maximum Power Voltage (Vmp/V)

31.2

31.4

31.6

31.8

32.0

Maximum Power Current (Imp/A)

17.33

17.37

17.40

17.45

17.49

Open Circuit Voltage (Voc/V)

37.5

37.7

37.9

38.1

38.3

Short Circuit Current (Isc/A)

18.41

18.47

18.52

18.56

18.60

Module Efficiency (%)

20.7

20.9

21.0

21.2

21.4

Power Output Tolerance (W)

0~+5W

Temperature Coefficient of Isc

+0.05%/°C

Temperature Coefficient of Voc

-0.28%/°C

Temperature Coefficient of Pmax

-0.35%/°C




Certifications

All of SunEvo's products have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments. We pursue the ultimate in quality and provide the best guarantee for customers' assets and profits.


SunEvo-Solar-PV-Panel-Monocrystalline-CE-TUV-UL-IEC-61215-IEC-61730-INMETRO-CB-Certificates-Photovoltaic-Solar-Cell-Module


· ISO 9001: 2015: ISO Quality Management System

· ISO 14001: 2015: ISO Environment Management System

· ISO 45001: 2018: Occupational Health and Safety

· CE & EU declaration of conformity

· IEC 61215 / IEC 61730 Anti-PID Test for Photovoltaic Module

· IEC 61701 Salt Mist Corrosion Test for Photovoltaic Module

· IEC 60068-2-68 Dust and Sand Test for Photovoltaic Module

· UL1703 / UL 61730 – PV Module Safety Standards by UL / CSA / INTERTEK

· Italian First-Class Report on Fire Prevention

· INMETRO Ex Tariff for Brazil

· MCS / JEPC & JET / CEC(Clean Energy Council) approved PV modules / FIDE / CB / DEWA / RETIE




 Advantages of Evo 6 Series Solar Panel

  • Based on the 210mm silicon wafer and monocrystalline PERC solar cell, the Evo 6 Series comes with several innovative design features allowing high power output up to 675W. Excellent temperature coefficient and low irradiation performance brings the greater power. Furthermore, benefit from square mono cells and high-density encapsulation technology, the efficiency of Vertex can reach up to 21.7%.
  • Based on the aim of improving the solar energy system efficiency and reducing the balance-of-system costs, SunEvo Solar's research and development team has introduced an innovative design of low-voltage and higher module string power output. Typicallly, SunEvo Solar can interconnect 28 Evo 6 series solar modules into a solar panel string. Compared with other reference PV module, a single module string can achieve up to a 34% power increase, 0.012-0.014 BOS reduction, 1.2%-1.5% LCOE reduction, indicating an innovative technological breakthrough and ushering in a new era of 600W+.
  • SunEvo Solar optimized the frame design of the 210mm large photovoltaic module, which allows for better load performance and suits for various solar power plant. In regards of module delivery, SunEvo Solar pioneers in proposing the innovative total delivery solution covering all aspects from packaging, logistics, loading and unloading to installation. The vertical placement packaging concept of modules maximizes the space utilization of container, and use of innovative assistant tool is easy for unpackaging and could prevent modules from falling down. SunEvo Solar always takes a customer-oriented approach and leads the industry in continuous breakthrough innovation, which is an important force in promoting the rapid development of the PV industry.
